Excavation Protection System

The Last Line of
Physical Defense.

DigBarrier™ is a passive HDPE mechanical protection system installed above buried pipelines. When an excavator hits where it shouldn't — the plate stops it before it reaches your asset.

See How It Works Technical Documents

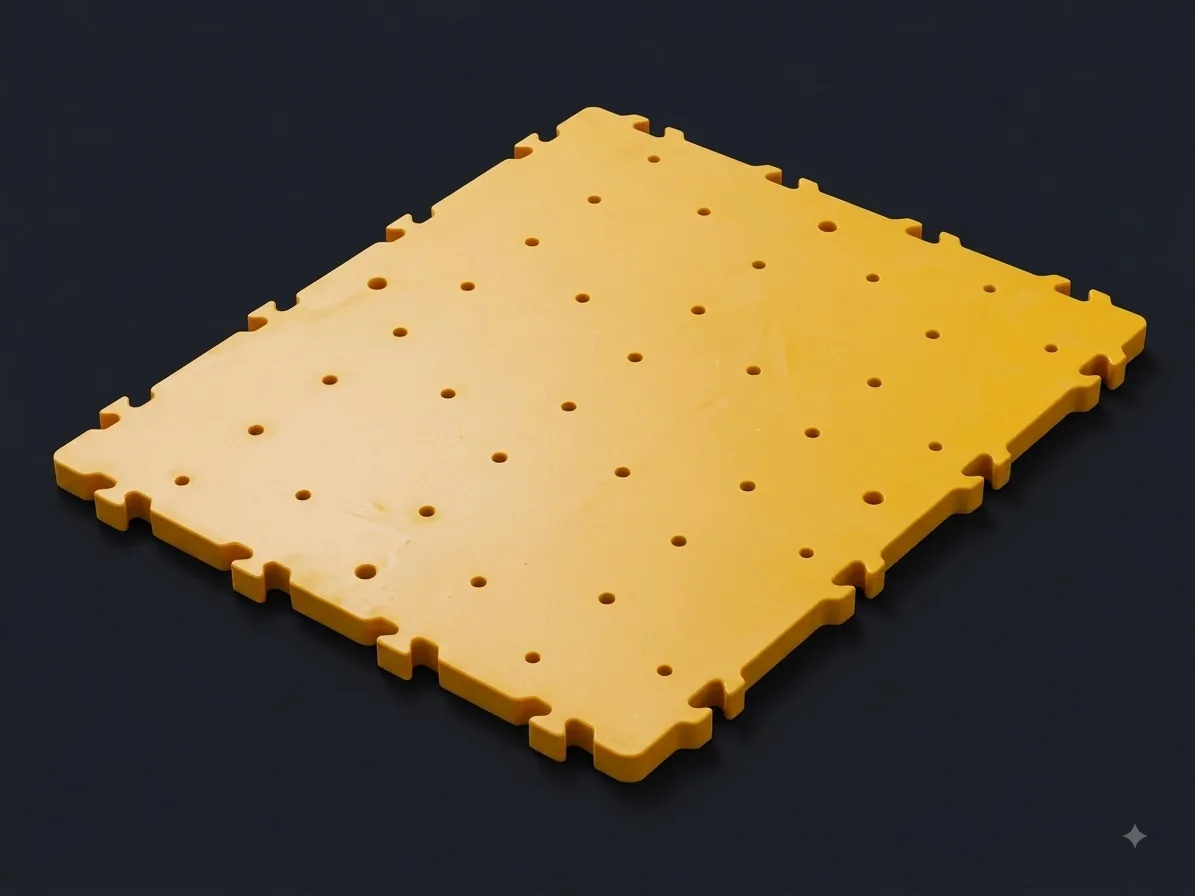

DigBarrier PG1 protection plate
$30B+
Annual cost of excavation damage in North America
50%
Of damage occurs despite correct 811 procedures
HDPE
High-Density Polyethylene modular plate system
0 sec
Warning time when a bucket hits an unprotected pipeline
The Problem

Procedures alone are not enough.

Even when every step is followed — 811 notified, facilities marked, operators trained — excavation damage still occurs. The reason is a physical gap that procedures cannot close.

"At the moment of impact, the system's last line of defense is human behavior alone. DigBarrier™ closes the physical gap."
👁
Visual marks disappear
Once topsoil is removed, paint marks and flags are gone. The operator digs from memory.
🌊
Depth perception fails
In muddy or flooded trenches, the operator cannot see the asset until the bucket makes contact.
⚠️
Zero mechanical resistance
Warning tape offers no resistance to excavation equipment. The pipe is the first physical obstacle.
⏱
Human reaction time fails
The time to rupture a plastic pipe is shorter than the human reflex to stop the excavator.
How It Works

Install. Backfill. Protect.

No power. No sensors. No activation. DigBarrier™ works by physical presence alone.

1
Pipeline laid
Asset installed at standard depth per code requirements.
2
First backfill
Initial soil layer placed above the asset.
3
DigBarrier™
Modular HDPE plates interlocked to cover full trench width.
4
Trench filled
Remaining soil placed. System invisible after installation.
5
Protection active
Plate intercepts the bucket before it reaches the asset.
Installation Cross-Section
Ground surface
Backfill soil — above plate
DigBarrier™ HDPE Plate ← PROTECTION LAYER
Backfill soil — below plate
Protected pipeline / cable
Who It Protects

Built for the people who keep infrastructure running.

🔥
Gas Utilities
Distribution & Transmission
Regulatory defensibility — "reasonable preventive measure"
Yellow HDPE matches gas marking standards
Strengthens post-incident audit position
📡
Telecom & Fiber
Networks & Trunk Routes
One cut can disconnect thousands of users
SLA protection and business continuity insurance
Custom colors per utility marking standard
🏗
Civil Contractors
Trench & Pipeline Projects
Physical evidence of protective measures installed
Comply with utility specs requiring mechanical protection
Install in minutes — no tools or training required
Key Attributes

Passive. Mechanical. Defensible.

Passive
No power or activation
Works by physical presence. No batteries, sensors, software, or monitoring required. Ever.
Mechanical
Engineered impact resistance
HDPE engineered to absorb and redistribute excavator bucket forces before they reach the asset.
Modular
Any trench width
Male/female interlocking tabs connect PG1/PG2/PG3 plates to cover any geometry.
Sacrificial
Asset survives contact
Designed to fail before the pipeline does — converting catastrophic events into manageable ones.
Defensible
Audit trail built-in
Documents that a "reasonable physical preventive measure" was in place — the regulatory standard.
Selective
Risk-based deployment
Applied only where residual risk is unacceptable — not blanket installation. Credibility through selectivity.

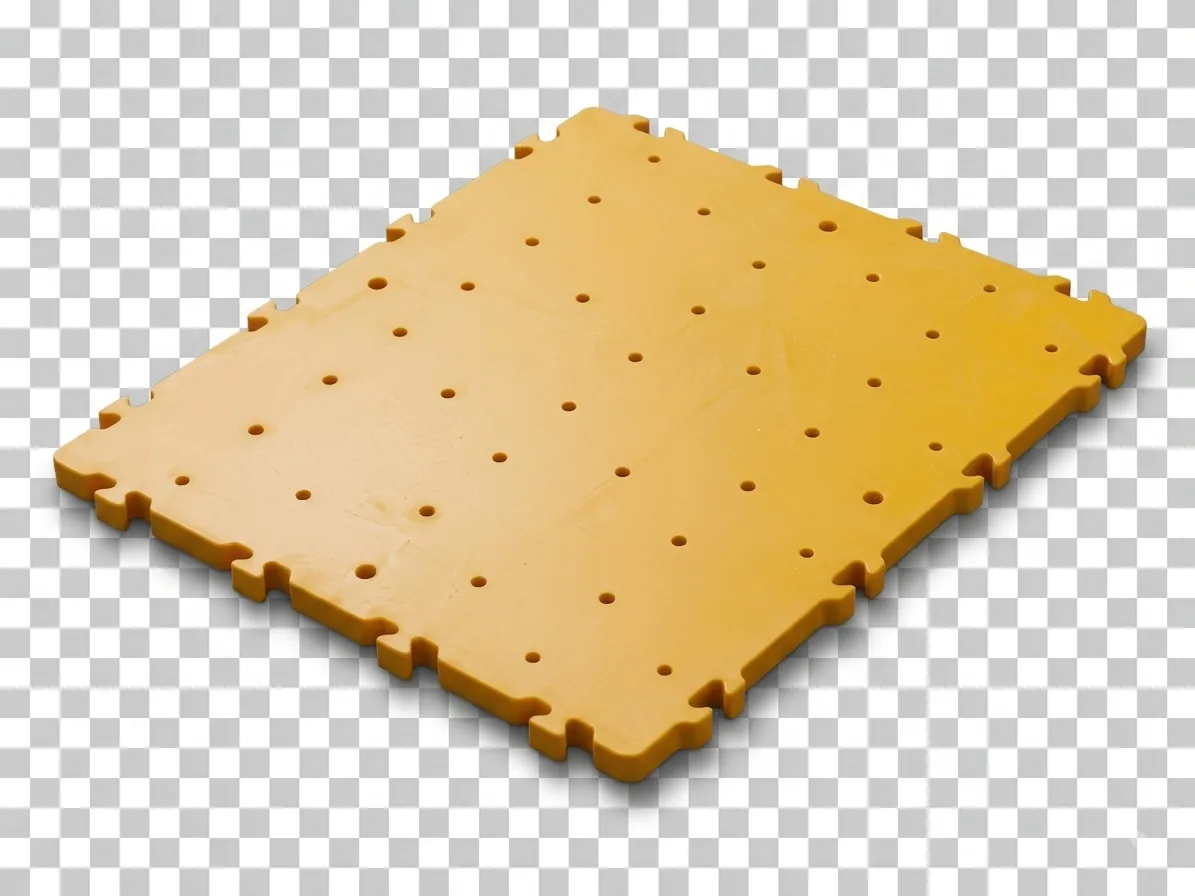

DigBarrier PG1 plate

Is there a physical gap in your protection strategy?

This may or may not be the right approach — the question is whether it's worth evaluating.
